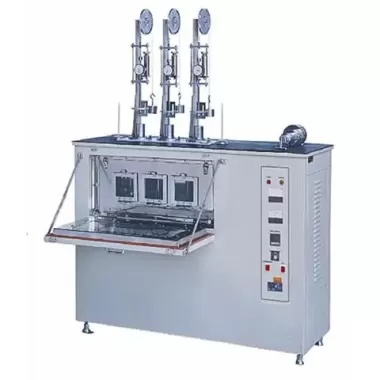

This machine is used for the heat deformation test of power cords. Put specimen into test chamber of this machine under a certain temperature for 30 minutes, then clamp specimen between two parallel plates, with the upper plates being subject to a constant load under the same temperature for 30 minutes. Afterwards,the thickness difference before/after heating is divided by the thickness before heating and multiplied by % as unit, that is deformation rate.
Thông số kỹ thuật:
Technique parameter:
1/ Nhiệt độ: Nhiệt độ phòng ~200℃
Temp.: Room Temp ~200℃
2/ Phương thức khống chế nhiệt độ: PID+SCR
Temp control: PID+SCR
3/ Quả cân: 50, 100, 200, 500, 1000g×3 bộ
Weight: 50, 100, 200, 500, 1000g ×3 sets
4/ Đo độ dày: 0.01~10mm×3 bộ
Thickness measurement: 0.01~10mm×3 sets
5/ Kích thước (W×D×H): 122×58×175cm
Dimension (W×D×H): 122×58×175cm
6/ Trọng lượng: 150kg
Weight: 150kg
7/ Nguồn điện: 1∮, 220V, 7A
Power: 1∮, 220V, 7A
